Grade 7 Grade 5 Titanium Rod Polished Surface Racing Application

Baoji Lihua Nonferrous Metals Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Grade 7 Grade 5 Titanium Rod Polished Surface Racing Application

  • 1
  • 2
  • 3

Brand Name : LIHUA

Model Number : LH-TB

Certification : ISO9001, TUV etc.

Place of Origin : Baoji, China

MOQ : 10kg

Price : US dollar $15/kg--US dollar $30/kg

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000 kgs per month

Delivery Time : 5-15 work days

Packaging Details : Plywood box for export

Product name : titanium bar

Standard : ASTM B348

Material : gr1 gr2 gr5 gr7

Application : chemical industry

Shape : round

Diameter : 6-350mm

Length : As per your requirements

Surface : Polished

Contact Now

Polished ASTM B348 gr1 gr2 gr5 gr7 titanium rod for chemical industry

1. Product Information of Titanium Rod

Product titanium rod
Item Name Polished ASTM B348 gr1 gr2 gr5 gr7 titanium rod for chemical industry
Application Chemical industry
Shape Round, Square, Hex
Material GR1, GR2, GR5, GR7, GR12
Standard ASTM B348, ASME SB348
Diameter 6-350mm
Length Max 6000mm
Surface Polished, Pickling

Grade 1—UNS R50250. Unalloyed titanium

Grade 2—UNS R50400. Unalloyed titanium

Grade 5—UNS R50400. Titanium alloy (6% aluminum, 4% vanadium)

Grade 7—UNS R52400. Titanium alloy (0.12 to 0.25 % palladium)

Grade 12—UNS R53400. Titanium alloy (0.3 % molybdenum, 0.8 % nickel)


2. Tolerance of Titanium Rod

Diameter(mm) h7 h8 h9 h10 h11 h12
Tolerance precision (um)
3~6 12 18 30 48 75 120
6~10 15 22 36 58 90 150
10~18 18 27 43 70 110 180
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X)

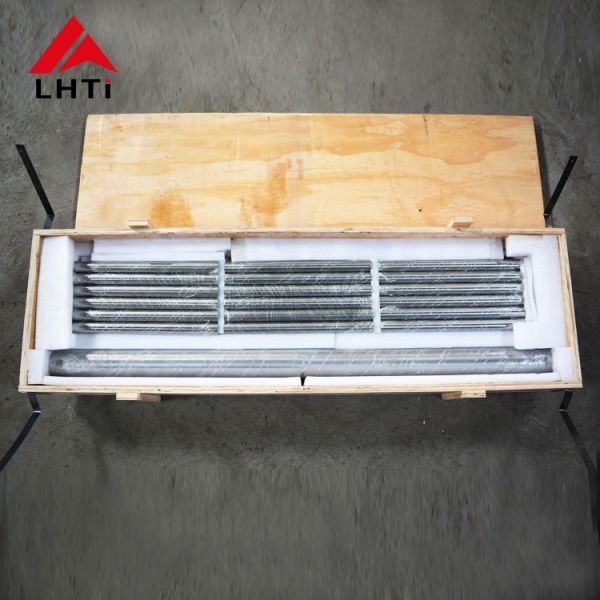

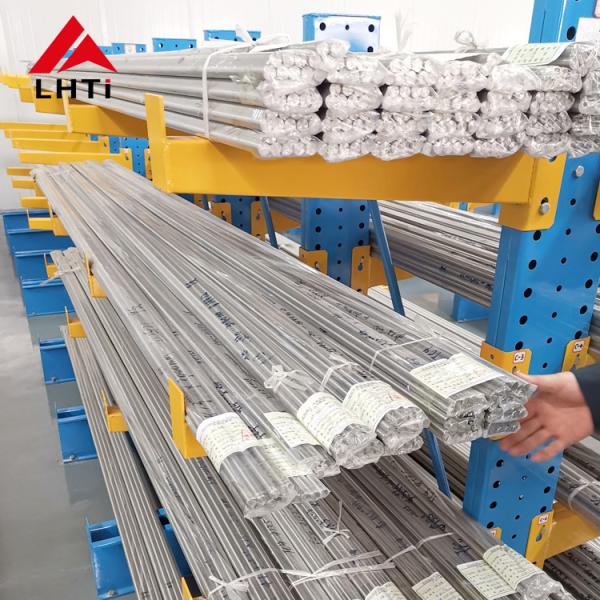

3. Detailed Images of Titanium Rod

4. Our Factory

  • As a leading manufacturer & trader of titanium rod for over 16 years, Baoji Lihua has exported our titanium rod to many countries, including the US, Ukraine, Romania, Italy and Chile etc. The quality of our products is widely recognized.
  • We strictly abide by ASTM B348 during the production process of titanium rod to ensure the precision.
  • Customized products are always welcomed.
  • We know the market very well so our price will make you more competitive.
  • We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.

5. Why Choose Titanium

High Strength Titanium strength/density ratio is better than other metals, components with high strength, good rigity, less weight can be made out of titanium. Titanium is applied for aircrafts engines, frames, skins, fastners and landing gears.
Anti-Corrosion Compared with stainless steel, titanium alloy’s corrosion is better in moisture laden air, seawater, titanium greatly resists spot corrosion, acid corrosion and stress corrosion. Titanium resists corrosions to alkali, chloride, chlorinated organic sunstances, sulphuric acid, nitric acid.
High-Temperature Resistance Titanium application temperature’s higher than aluminium alloys. Titanium can work in 450-500℃ for long time. Titanium alloy stil prossesses high strength when working in 150-500℃. Titanium working temperature can be reached to 500℃
Low Temperature Resistance Titanium alloys still owns its mechanical properties when working in low or super low temperature conditions. Titanium alloys with low-temperature resisitance and extra low interstitial still possess good ductility, therefore, titanium alloy is sort of good low temperature structural material.
Eco-Friendly Metal Thermal conductivity of titanium is lower than carbon steel or copper, but titanium owns very good corrosion resistance, therefore, titanium thickness can be greatly reduced, also the heat exchange mode is dropwise condensation between titanium and steam. This kind of mode reduces heat transfer resistance, no fouling on titanium surface, which makes titanium thermal conductivity better.
Good Thermal Conductivity Titanium is non-magnetic metal, it can’t be magnetized in large magnetic field, also titanium is toxic-free and compatibility with blood, there, titanium is applied in medical field.

6. Chemical Requirements of Titanium Rod

N C H Fe O Al V Pd Mo Ni Ti
Gr1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal

7. Tensile Requirements of Titanium Rod

Grade Tensile strength(min) Yield strength(min) Elongation(%)
ksi M Pa ksi M Pa
1 35 240 20 138 24
2 50 345 40 275 20
5 130 895 120 828 10
7 50 345 40 275 20
12 70 438 50 345 18
